Heat shrink tubes are incredibly versatile and useful tools in various industries, including electronics, electrical engineering, and automotive. These tubes, made from a flexible polymer material, shrink when exposed to heat, creating a secure and protective seal around wires, cables, and other components.
From insulating electrical connections to providing strain relief, heat shrink tubes offer numerous benefits. This ultimate guide will cover everything you need to know about heat shrink tubes, including their applications, types, sizes, and installation techniques.
Heat shrink tubes, also known as heat shrink tubing or heat shrink sleeves, are flexible polymer tubes that shrink in diameter when exposed to heat. They are commonly used in various industries for insulation, protection, and strain relief purposes.
When heat is applied to a heat shrink tube, it undergoes a process known as heat shrinkage. The tube's polymer material contains a memory that causes it to return to its original, pre-shrunk size when heated.
The heat can be applied using a heat gun, a flame, or a specialized heat shrink oven. As the heat is applied, the tube starts to shrink and conforms tightly to the object it is covering, whether it's a wire, cable, or other components. This creates a secure and protective seal around the object, providing insulation against electrical currents, moisture, and other elements.

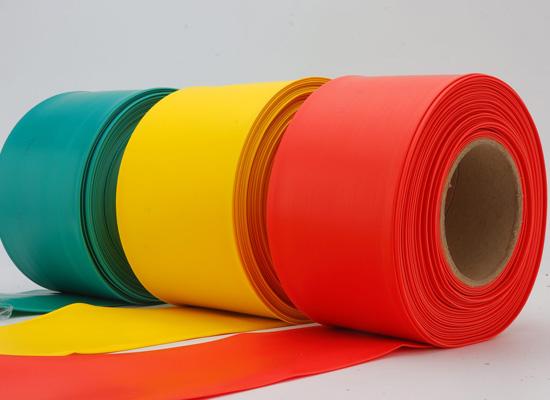

Heat shrink tubes are available in various sizes, diameters, and lengths to accommodate different applications. They come in different materials such as polyolefin, PVC, and fluoropolymer, each with its own unique properties and suitability for specific environments and conditions.
In addition to their insulating and protective properties, heat shrink tubes can also provide strain relief by relieving stress on cables or wires. By creating a tight seal, they help prevent the wires from bending or pulling apart, increasing the overall durability and lifespan of the electrical connections.
Overall, heat shrink tubes are a versatile and effective solution for electrical insulation, protection, and strain relief. They are widely used in industries such as electronics, electrical engineering, and automotive, as well as in various DIY projects.
Heat shrink tubes are widely used in various industries and applications due to their versatility and effectiveness.
Here are some common uses for heat shrink tubes:
One of the primary uses of heat shrink tubes is for electrical insulation. They provide a protective layer around wires, cables, and electrical components, preventing electrical currents from escaping and reducing the risk of short circuits, electrical shocks, and other electrical hazards.
Heat shrink tubes are commonly used to protect wires and cables from external elements such as moisture, chemicals, abrasion, and mechanical stress. By creating a tight seal around the wires and cables, heat shrink tubes ensure their longevity and reliability in challenging environments.
Heat shrink tubes are also used to provide strain relief for cables and wires. They help absorb and distribute stress, preventing wires from bending, breaking, or pulling apart due to excessive tension or movement. This ensures the durability and stability of electrical connections.
Heat shrink tubes can be used for identification and labelling purposes. They can be easily printed or labelled with information such as wire size, colour coding, serial numbers, or company logos. This helps in organizing and distinguishing different wires and cables, enhancing efficiency, and reducing the chances of errors during installation and maintenance.
Heat shrink tubes are extensively used in the automotive industry for wiring harnesses, connectors, and other electrical components. They provide insulation, protection against moisture and chemicals, and strain relief, ensuring the reliable performance of electrical systems in vehicles.
Heat shrink tubes are popular among electronics enthusiasts and DIYers for various projects. They can be used to insulate exposed connections, repair damaged cables, and organize wires. Heat shrink tubes also provide a neat and professional appearance to the finished project.
Heat shrink tubes are suitable for marine and aerospace applications where exposure to moisture, chemicals, and extreme temperatures is common. They provide reliable insulation, protection, and strain relief in these demanding environments.
Their versatility, ease of use, and effective performance make them a preferred choice in many industries and applications.
Choosing the right heat shrink tube for your needs is essential to ensure proper insulation, protection, and durability.
There are various factors to consider when selecting a heat shrink tube, including:
Heat shrink tubes come in different sizes, ranging from small diameters to large sizes capable of covering bulky cables and connectors. It is important to choose a tube size that matches the diameter and dimensions of the wire or cable you are working with. Selecting the correct size ensures a snug fit and proper sealing.
Heat shrink tubes have different shrink ratios, which indicate how much the tube will shrink when heated. Common shrink ratios include 2:1, 3:1, and 4:1. The shrink ratio determines the extent to which the tube will shrink and provide a tight seal. Consider the size of the object you are covering and choose a shrink ratio that can accommodate its dimensions.
Heat shrink tubes are made from various materials, including polyolefin, fluoropolymer, PVC, and silicone. Each material has different properties and is suitable for specific applications. Polyolefin is a popular choice due to its excellent electrical insulation properties and wide temperature range. Fluoropolymer tubes offer exceptional chemical resistance and high operating temperatures. PVC tubes are cost-effective and offer good electrical insulation. Silicone tubes are flexible, heat resistant, and suitable for high-temperature applications.
Consider the temperature range in which the heat shrink tube will be used. Different materials have different temperature ratings, and it is important to choose a tube that can withstand the temperature requirements of your application. Ensure that the chosen tube can handle both the maximum and minimum temperatures it will be exposed to.
Consider the environmental conditions in which the heat shrink tube will be used. Factors such as moisture, chemicals, UV exposure, and mechanical stress can impact the performance of the tube. Select a tube that is resistant to the specific environmental conditions it will be exposed to, ensuring long-term reliability.
Some heat shrink tubes come with additional features such as adhesive lining, which provides a watertight seal, or dual-wall construction for added insulation. Consider any special requirements or features that may enhance the performance and longevity of the heat shrink tube in your application.
By considering these factors and evaluating your specific needs, you can choose the right heat shrink tube that meets your requirements and provides reliable insulation, protection, and durability.
Installing heat shrink tubes properly is crucial to ensure a secure and effective seal.
Here are some steps to follow for the proper installation of heat shrink tubes:
Measure and cut: Start by measuring the length of the area where the shrink tubing will be applied. It is recommended to cut the tube slightly longer to allow for shrinkage during the heating process.
Choose the right size: Select a heat shrink tube with a diameter that is slightly smaller than the object you are covering. This will ensure a snug fit and proper sealing once the tube is heated.
Clean the surface: Before applying the heat shrink tube, make sure the surface is clean and free from any debris or contaminants. This will ensure optimal adhesion and prevent any interference with the shrinkage process.
Slide the tube onto the object: Place the cut heat shrink tube over the object, ensuring it covers the entire length that needs to be protected or insulated. The tube should fit snugly without any gaps or overlaps.
Apply heat: Use a heat source such as a heat gun or a flameless lighter to evenly heat the shrink tubing. Move the heat source back and forth along the length of the tube to ensure uniform shrinkage. Be careful not to overheat or burn the tube.
Allow it to cool: Once the heat shrink tube has fully shrunk and formed a tight seal, allow it to cool down before handling. Cooling will ensure that the seal is set and the tubing is securely in place.
Inspect the installation: After the heat shrink tube has cooled, inspect the installation for any signs of damage, gaps, or loose ends. Ensure that the tube is properly sealed and provides the desired level of insulation and protection.
Following these steps will help you properly install heat shrink tubes and achieve reliable insulation, protection, and durability. It is important to follow manufacturer guidelines and safety precautions when using heat sources for heating the tubes.
